Description
xFeatures

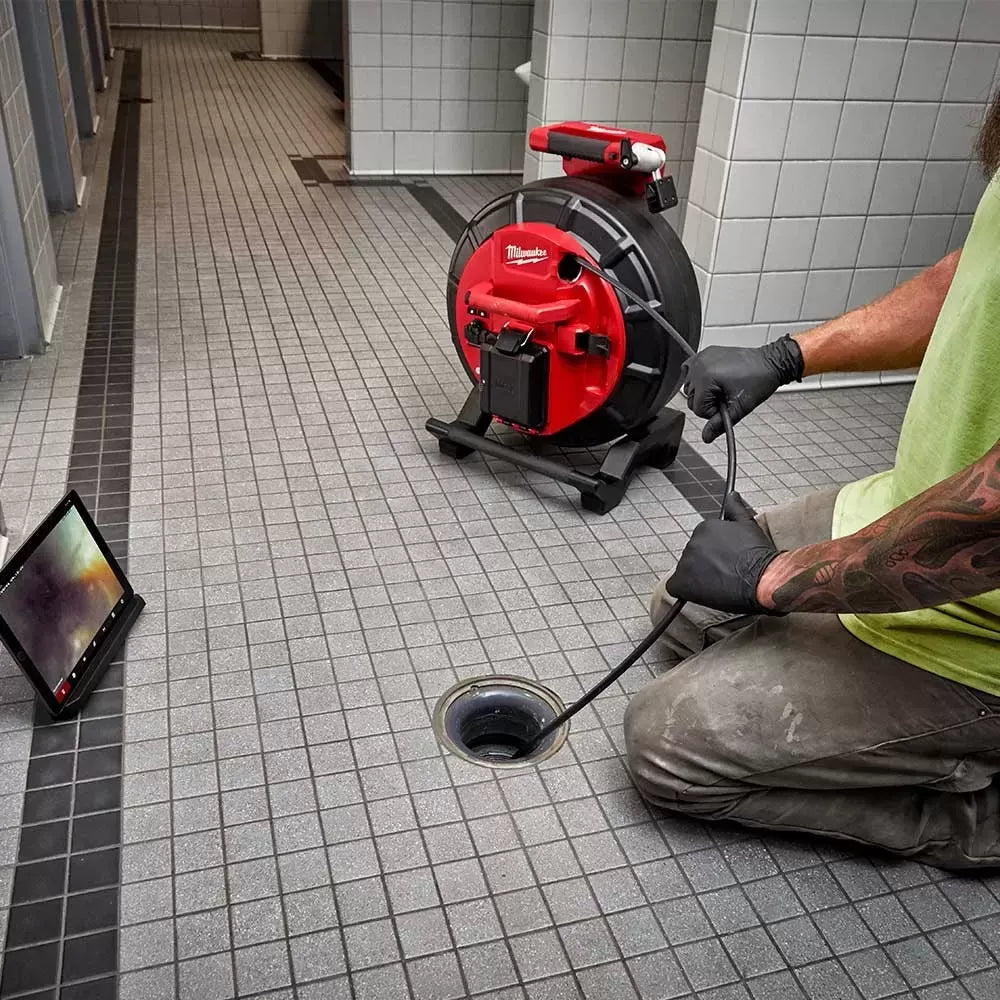

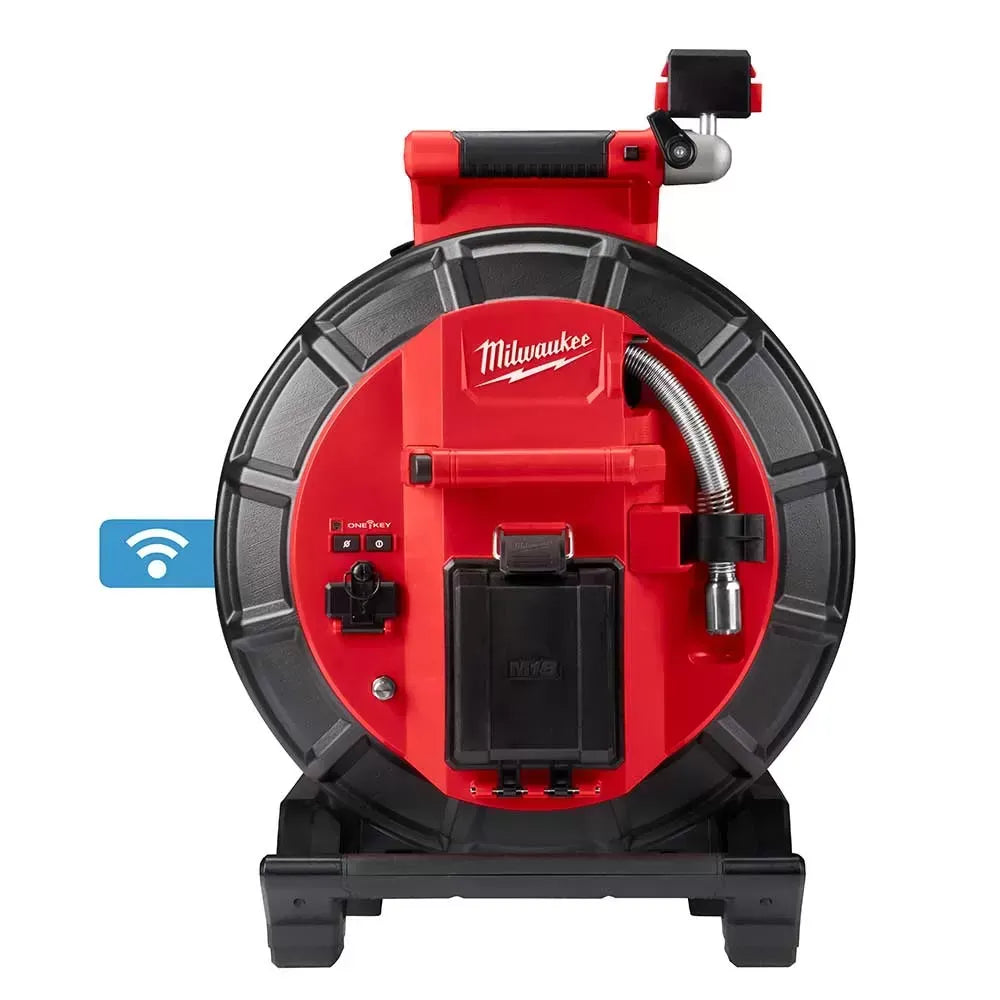

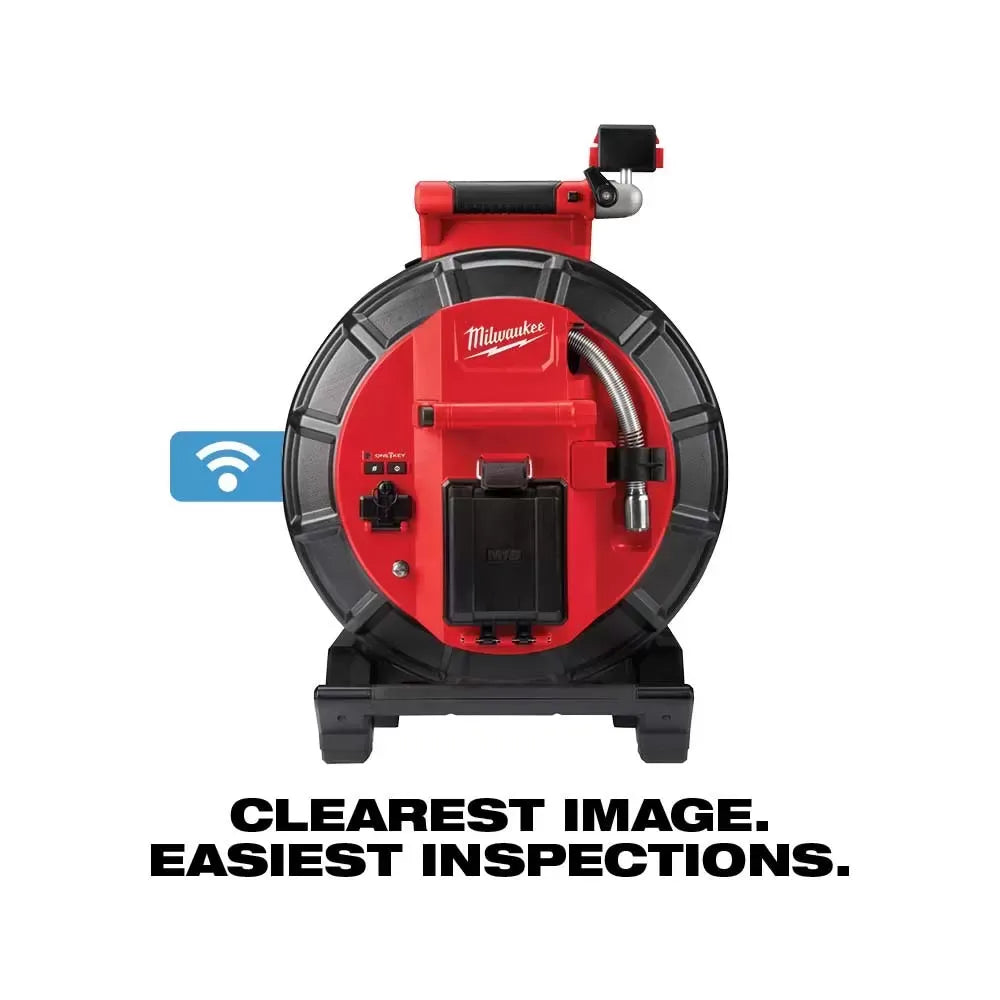

- 120 ft Pipeline Inspection System
- 1080p camera resolution providing the industry's clearest image inside of drain lines

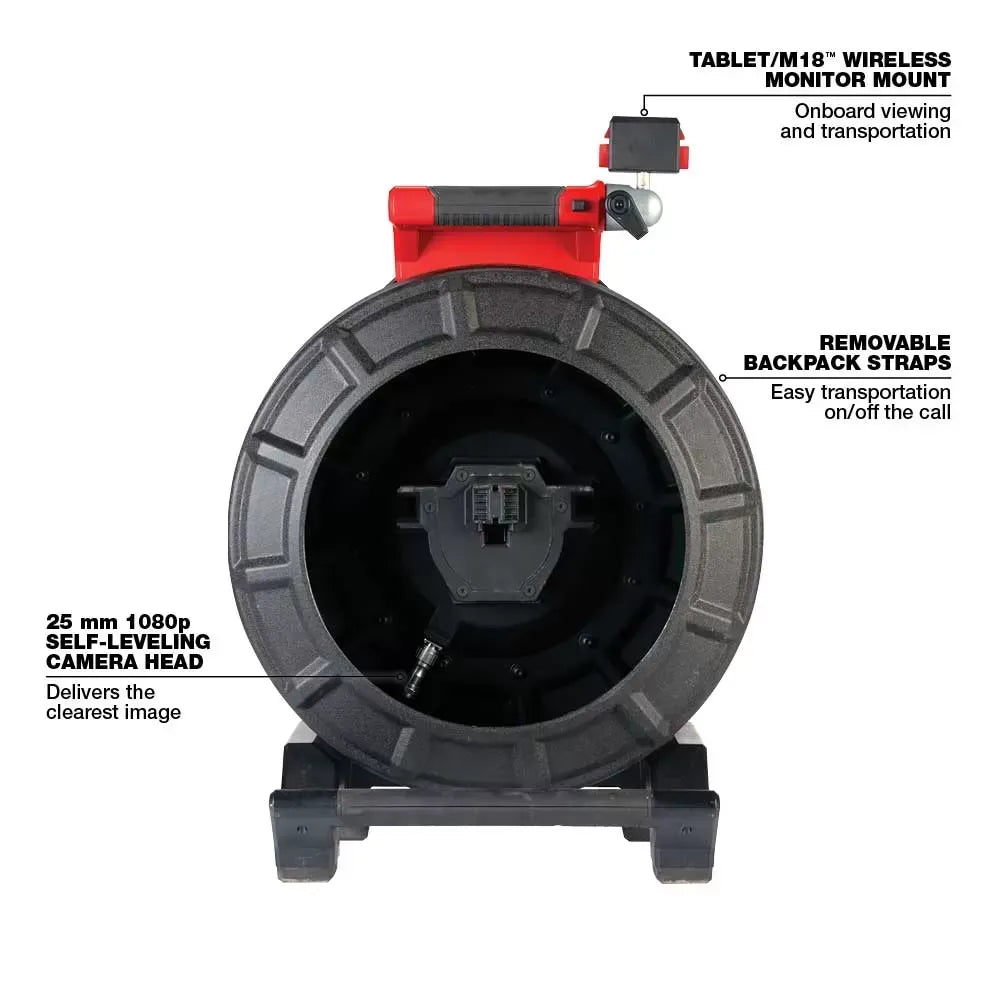

- 25 mm self-leveling HD camera head
- 10 mm Push Cable Diameter provides best mix of stiffness and flexibility

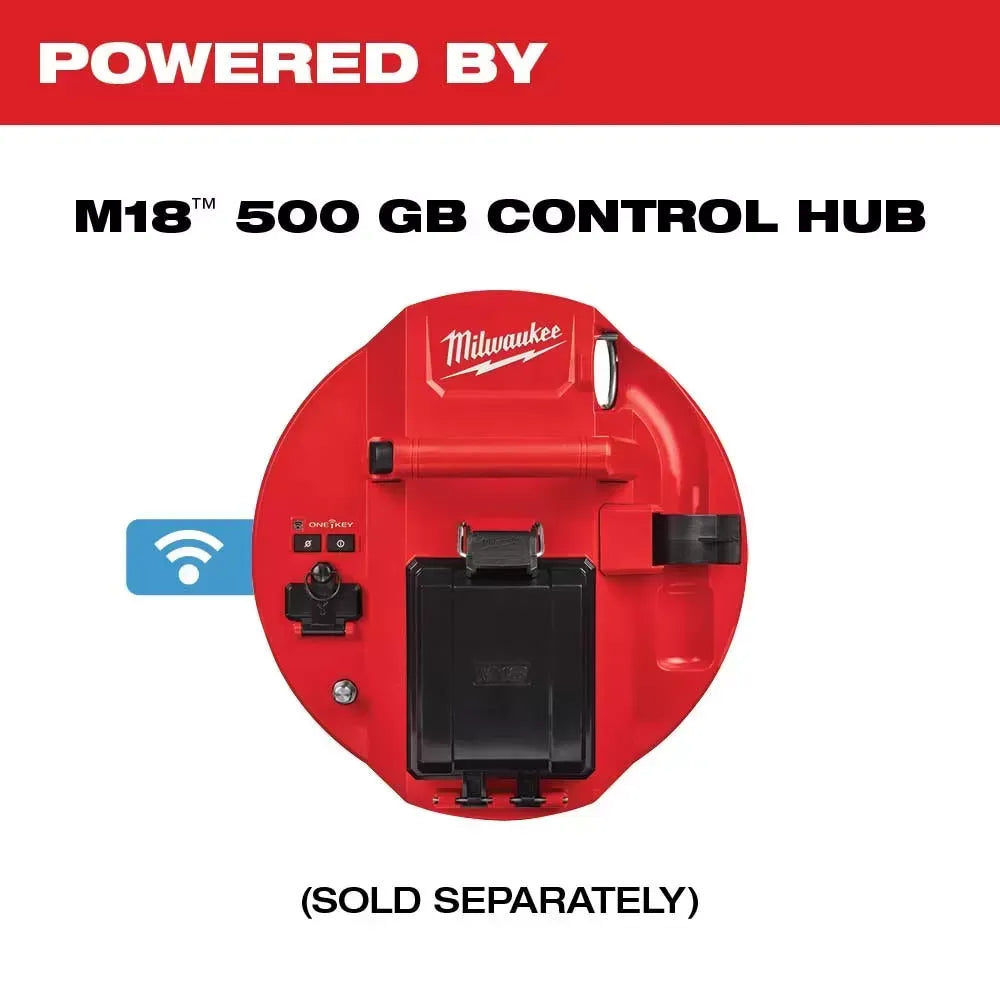

- Powered by the M18 500GB Control Hub
- Removable backpack straps for hands-free carrying
- Onboard monitor mount for viewing and transportation
- Swap batteries without system shutdown

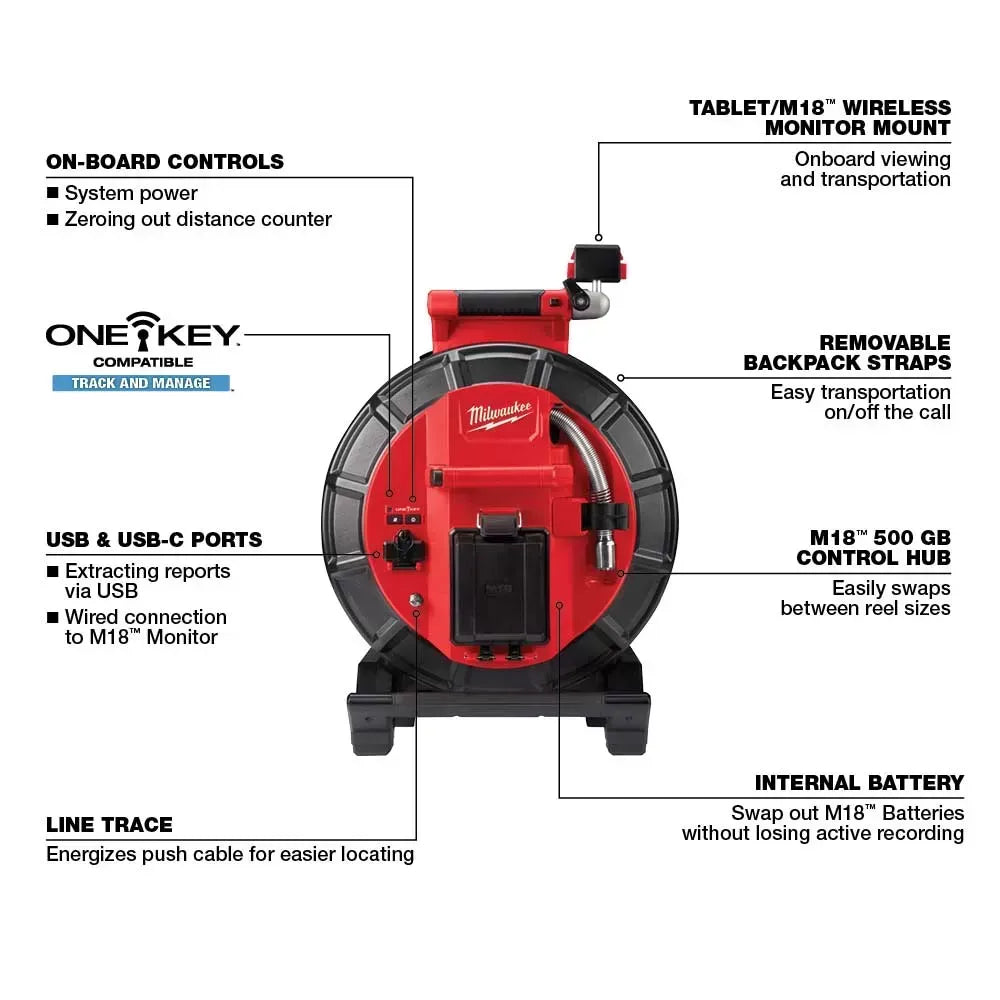

- 500GB Control Hub
- Record, Edit and Share to Mobile Devices
- Swap Batteries without System Shutdown

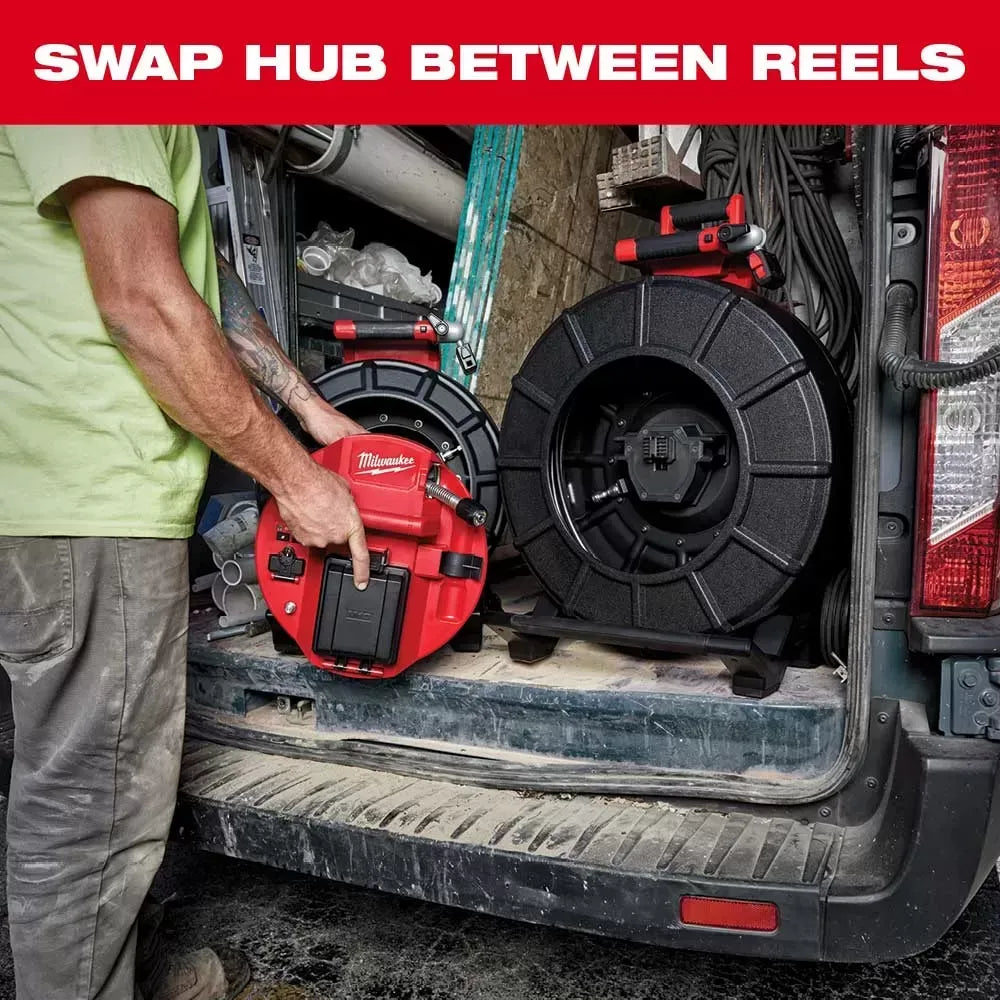

- Unmatched Versatility, Control Hub Swaps Between Reels
- Up to 200' of Wireless or wired connectivity to viewing device
- On board USB port allows for saving findings on memory stick
- One-Key technology allows for tracking, tool security, and inventory management
- Up to 9 hours of runtime with an M18 REDLITHIUM 5.0AH Battery
- Wired connection backup to the M18 Wireless Monitor via USB-C port
- Water tight battery door protects against water and debris
- Integrated handle and latch allow for easy one handed installation
- Sealed Battery Door
- Sealed USB Door

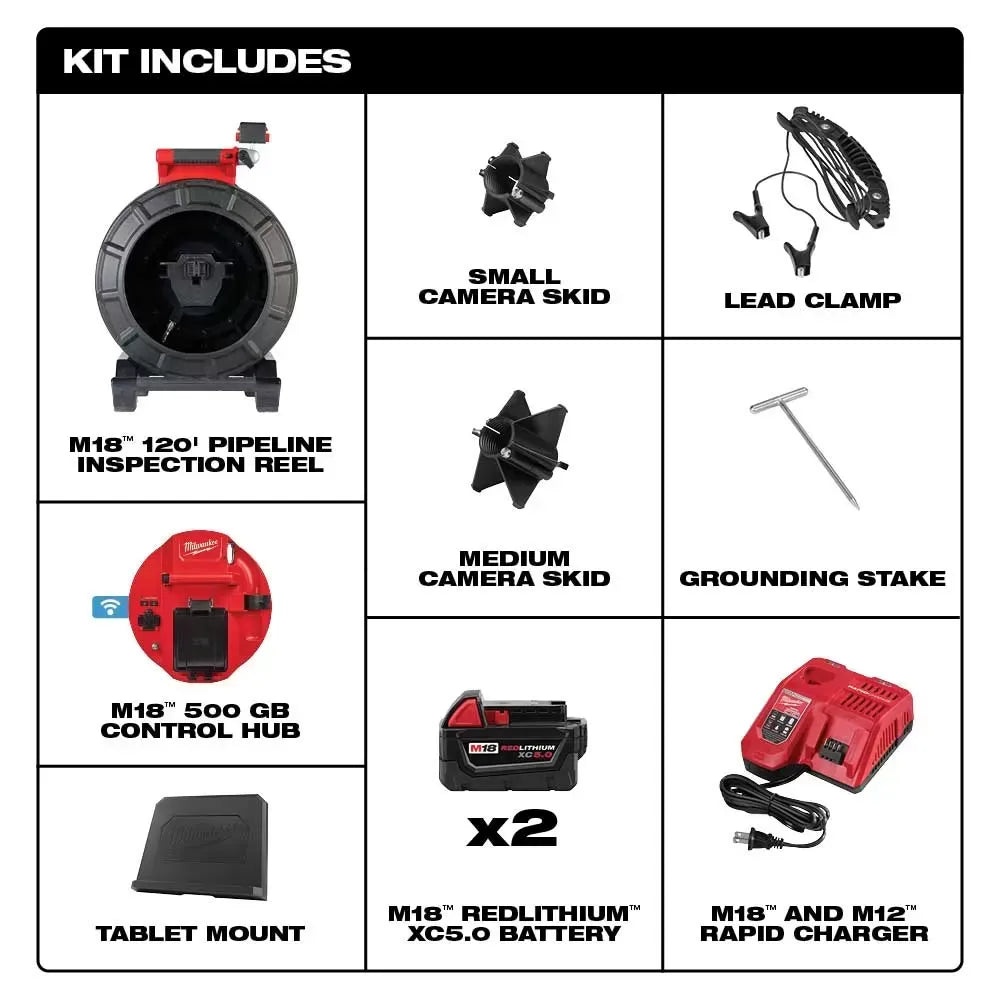

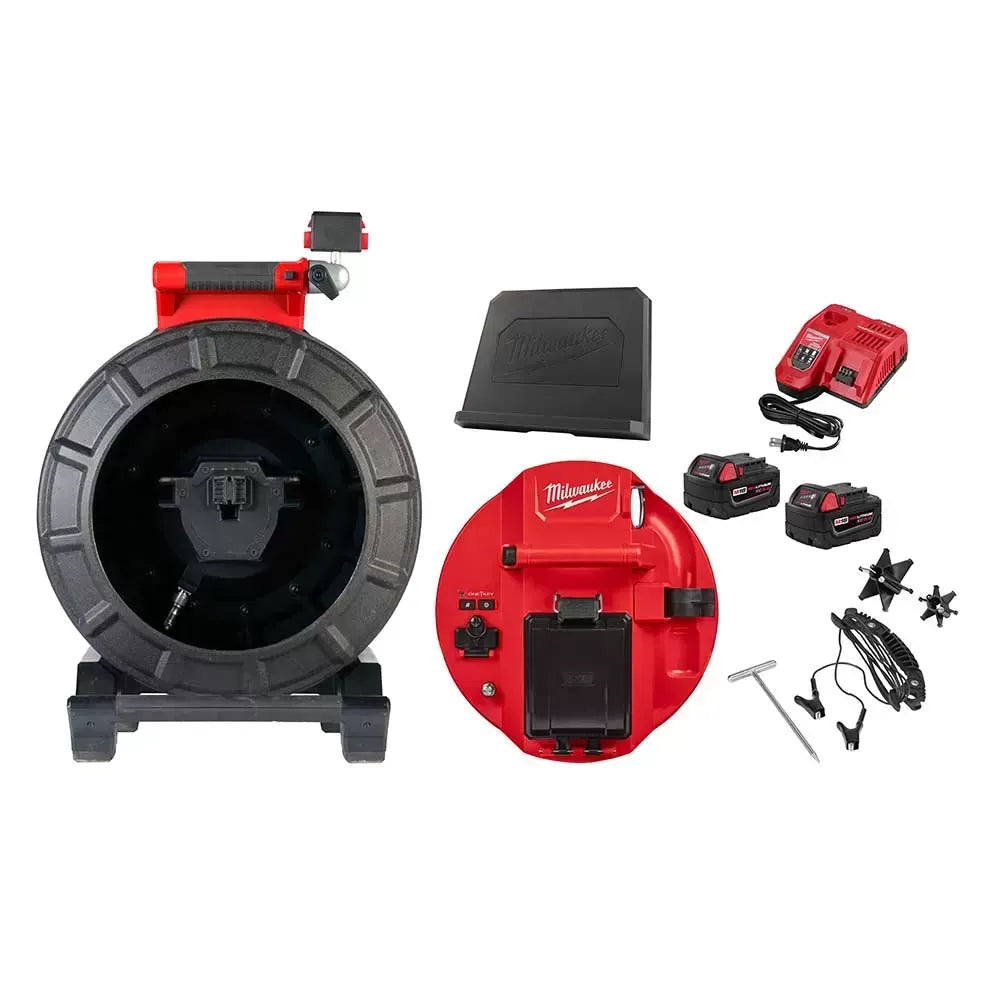

What's in The Box
- 120’ Pipeline Inspection Reel (2973-20)
- M18 500GB Control Hub (Tool Only)(2970-20)
- (2) M18 REDLITHIUM XC5.0 Extended Capacity Battery Pack(48-11-1850)
- M18 / M12 Rapid Charger(48-59-1808)
- Tablet Mount(48-53-2970)
- Medium camera head skid for 25mm camera
- Small camera head skid for 25mm camera
- Grounding stake with lead clamps and cable
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 1 Year Camera Head Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 2973-22 |
| Brand | Milwaukee |
| 120 ft Pipeline Inspection System | |

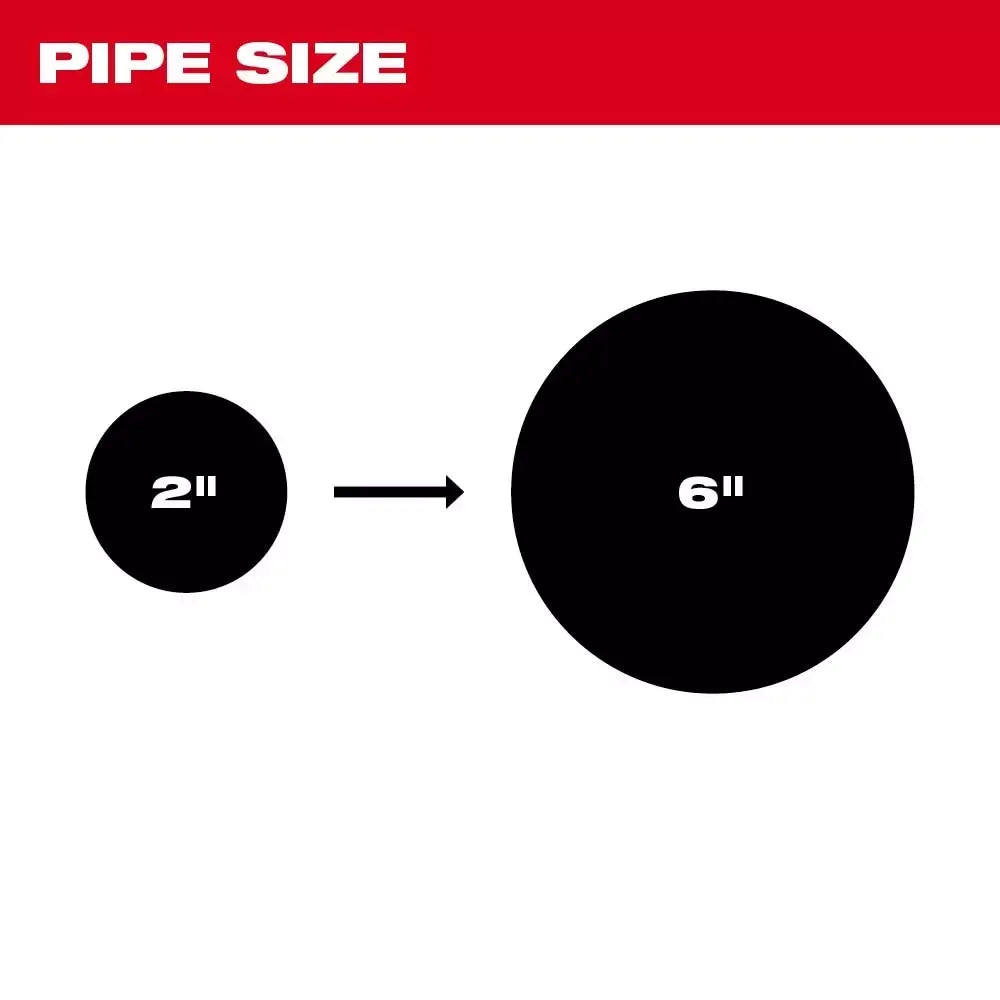

| Line Capacity | 2 in - 6 in |
| Push Cable Length | 120 ft |
| Push Cable Diameter | 10mm |
| Camera Resolution | 1080p |
| Camera Head Ingress Protection | IP67 |
| Sonde Frequency | 512 Hz, 33 kHz |
| Line Trace Frequency | 33 kHz, 83 kHz |
| Length | 13.3 in |
| Width | 17.8 in |
| Height | 22.7 in |
| Weight | 26 lbs |
| 500GB Control Hub | |
| Volts | M18 |
| Power | Cordless |

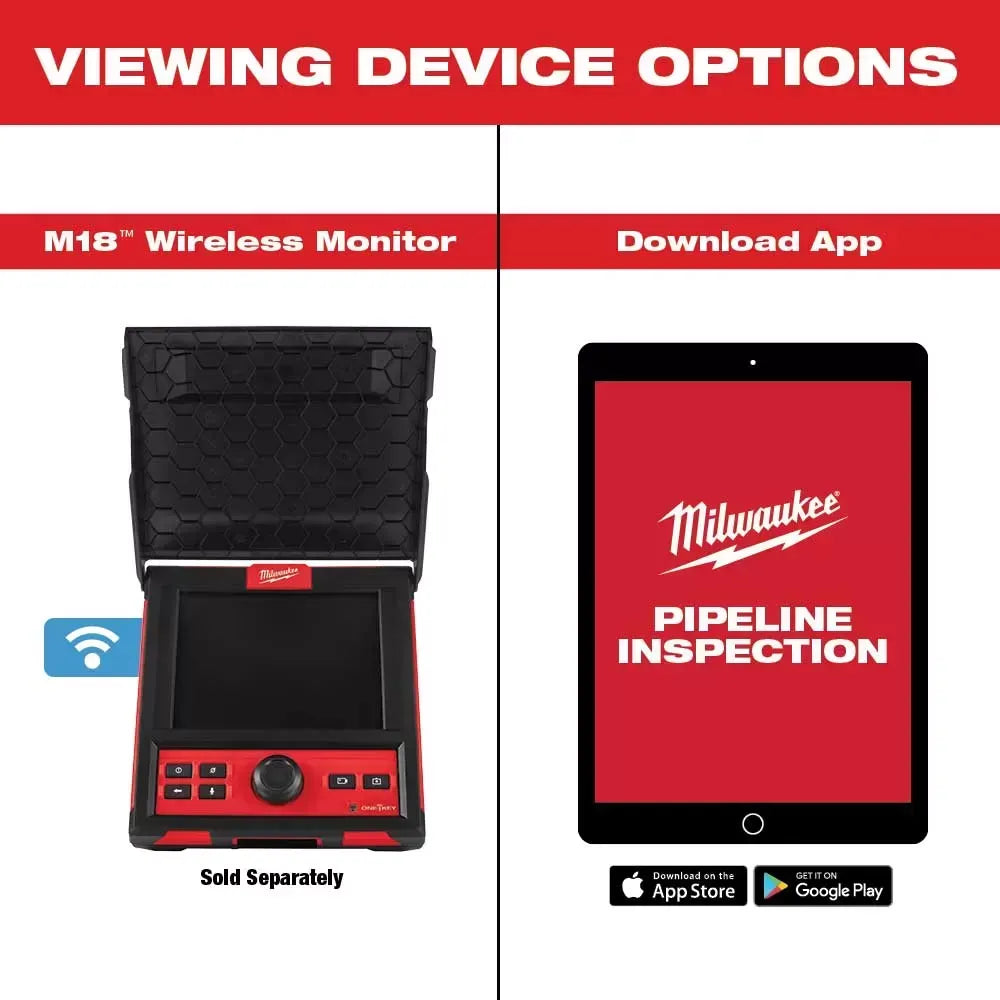

| Video Display | M18 Wireless Monitor or Milwaukee Pipeline Inspection App |
| Wireless Range | 200 ft |
| Runtime | 9 hours |
| Photo Format | JPEG |
| Video Format | MPEG4 |
| Internal Storage | 500 gb |
| Data Transfer Method | USB, wireless to mobile devices |
| Line Trace Frequency | 33 kHz, 83kHz |
| Length | 12.2 in |
| Width | 13 in |
| Height | 13.5 in |
| Weight | 8 lbs |
